The Portal Development Kit (PDK), ARK's six-axis motion platform, needs 1.00 × 1.00 m of floor on its own feet, or a circle 1.57 m across on its extension feet. It runs from an earthed wall outlet, on a 16 A circuit, on any mains from 100 to 290 V, with no compressed-air line: its supply delivers 3,000 W on 200–290 V and 1,400 W on 100–130 V, and the compressor is built in. It arrives as a kit and is assembled and anchored where it will be ridden.
Plan the room once. Then the room is the last thing you notice.
ARK Dynamics ·
What the PDK asks of a room
The PDK is a development kit: early-access hardware, software in active development. It is driven by six direct-drive motors and supplied in four builds.
| What you plan | PDK | Source |
|---|---|---|
| Floor, on its own feet | 1.00 × 1.00 m | ARK specification |
| Floor, on the extension feet | a circle 1.57 m across; three legs at 120° | ARK specification |
| Height, retracted | 0.50 m | ARK specification |
| Mass, full build | 115 kg | ARK specification |
| Payload | 250 kg in total, rider included | ARK rated limit |
| Platform travel, single axis | 158.23 mm fore and aft · 143.85 mm side to side · 117.35 mm up and down | ARK specification |
| Mains | 100–290 V AC, auto-switching | ARK engineering record |
| Supply rating | 3,000 W on 200–290 V · 1,400 W on 100–130 V | ARK engineering record |
| Peak power | 30 kW, from a 1.41 F capacitor bank | ARK engineering record |
| Compressed air | None to supply: integrated compressor | ARK specification |
| Link to the PC | Ethernet | ARK specification |
| Keep-clear zone, floor load and mounting, rider height | Stated in the Safety Manual supplied with your kit | Terms 7.1 |
Figures as published by ARK on 1 October 2026.
How much floor space does the PDK need?

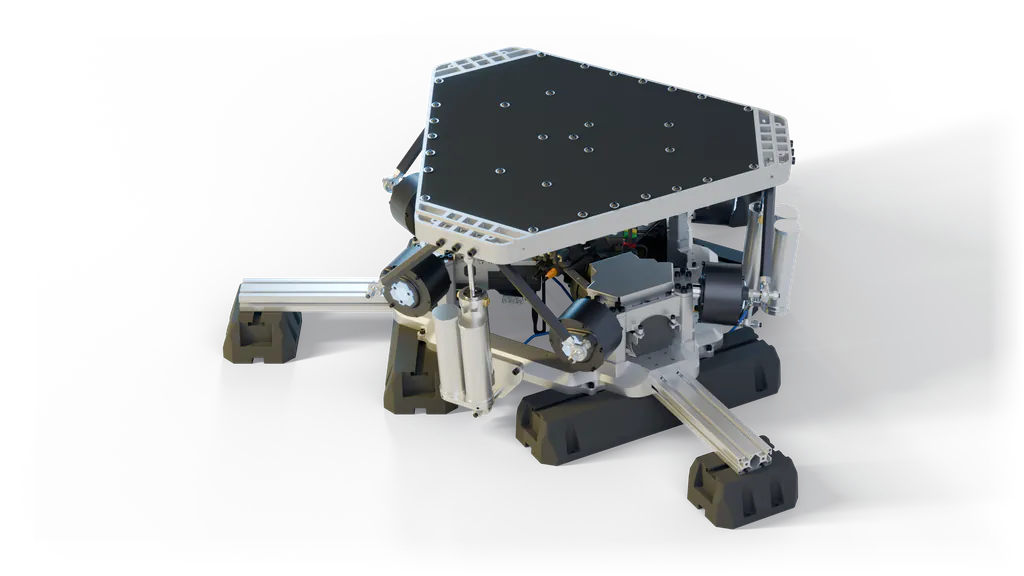

On its own feet, the PDK's footprint is 1.00 × 1.00 m. On the extension feet it stands on three legs at 120°, one per motor block, and fits inside a circle 1.57 m across: plan that floor as a circle, not a rectangle. To mark it out, a cord 0.785 m long (1.57 ÷ 2), pinned at the center, draws the circle.
How much space does the PDK need around it?
A keep-clear zone is the space around a moving platform that stays empty of people, pets and objects while it runs. The PDK's keep-clear zone is one of its rated limits, stated in the Safety Manual supplied with your kit. The Terms require it empty before every session and during operation (7.3, 7.6).
Inside that zone the platform moves. Its single-axis spans are 158.23 mm fore and aft, 143.85 mm side to side and 117.35 mm up and down. Combined moves reach further than these single-axis figures, so leave clearance beyond them. All six axes are in the envelope tables.
How much height does the PDK need?
Fully retracted, the platform is 0.50 m high. Heave, the up-and-down axis, spans 117.35 mm in the published envelope: ±58.68 mm about its center.
Above those figures, the ceiling depends on the seat you fit, which you supply, and on the rider in it. Rider height is one of the rated limits in the Safety Manual, beside the clearance envelope (Terms 7.1): plan the ceiling from that limit and from your seat.
What floor does the PDK need?
Anchoring is fixing a platform's feet to the floor and the structure beneath it. The PDK becomes a working machine only once it is assembled as the Installation Guide describes and either anchored to a floor and structure that meet the rated limits or stood on its extension feet on a floor that meets them (Terms 6.2). The first of its assembly steps is the feet: three floor mounts at 120°. On its own feet each is drilled and bolted to the ground; on the extension feet the platform stands without bolting.
Floor load and mounting are rated limits in the Safety Manual. Where the Installation Guide calls for a competent person for structural anchoring, the Terms require one. The floor is indoors, stable, level and dry: the Terms rule out operating outdoors, on an unstable or unlevel floor, or in a wet environment (7.6).
The full build is 115 kg. The PDK's rated payload is 250 kg in total: rider, seat, cockpit, wheel, pedals and anything else bolted on. There is no separate rider-weight figure.
What power does the PDK need?
Power comes down to two figures: the continuous rating of the supply, and the peak the motors demand at the onset of a movement.
The supply takes any mains from 100 to 290 V AC and is auto-switching: 3,000 W on 200–290 V mains, 1,400 W on a 100–130 V outlet. It goes on a properly earthed outlet, and only the supplied or an approved power supply is used (Terms 7.7).
The peaks come from a capacitor bank, not the wall: three 0.47 F, 63 V capacitors (1.41 F in all) store energy between movements. They release it at the onset, a peak of 30 kW.
That peak is 10 times the supply's 3,000 W (30,000 ÷ 3,000) and 21.4 times its 1,400 W (30,000 ÷ 1,400). 30 kW is not a load on your wiring. The socket feeds the supply, and the supply is rated at the two figures above.
An integrated compressor feeds the pneumatic cylinders that carry the static load, so the six direct-drive motors spend their current moving you, not holding you up.
The power-supply limits are rated limits in the Safety Manual. Where the Installation Guide calls for a competent person for electrical work, the Terms require one (6.2).
How does the PDK arrive?
A kit is a machine delivered as parts, with the instructions to build it. Every PDK is supplied that way, with the Installation Guide and the Safety Manual (Terms 6.1).
So the machine never goes through a doorway in one piece: the assembly steps follow, feet first, in the room where it will stand. The assembly sequence is on the development kits page.
What else goes in the room?
The rest of the room is what you supply. No build includes a seat, PC, display or games (Terms 3.3), and the seat must be rated for motion use. Plan for these too:
- An Ethernet run from your PC to the platform: the PC link is Ethernet.
- The emergency stop, placed within the rider's reach, and within a second person's reach when one is present (Safety, 7.2).
- Ventilation as the Installation Guide requires, and nothing flammable near the drives and power electronics (Terms 7.7).
Which build fits which room?
The motion core is the same in all four; the floor you plan follows the feet.
| Build | What it is | Floor to plan | USD | EUR |
|---|---|---|---|---|
| PDK | The motion core with a flat top, on its own feet | 1.00 × 1.00 m | 4,899.99 | 4,999.99 |
| PDK + Extension Feet & Table | The PDK on extension feet, with the wood table | Circle, 1.57 m across | 5,299.99 | 5,499.99 |
| PDK Racer | The PDK on extension feet, with the table and the steel racing chassis | Circle, 1.57 m across | 6,299.99 | 6,499.99 |
| PDK + ARK Ecosystem | The PDK on extension feet, with the table, the cockpit chassis and ARK's wheelbase, wheel, pedals and button box | Circle, 1.57 m across | 8,499.99 | 8,699.99 |
Development-kit prices in USD for the United States and the rest of the world, and in EUR for the EU. Import duty and tariffs are not included in the Kit price. Shipping is quoted separately; taxes by region are in the FAQ.
- Footprint, height and mass: FAQ, size
- Supply, capacitor bank and peak demand: the power supply
- Motion envelope, axis by axis: the envelope tables
- Rated limits and the Safety Manual: Safety
- Anchoring, the kit and what you supply: Terms, Section 6
Measured the room? The four builds and the full spec sheet are on one page.
