Portal Development Kit (PDK): this is a development kit. Supplied as a kit of parts to developers, integrators, researchers and B2B partners for evaluation and development, and assembled by the recipient. Not a finished consumer product, not offered for consumer sale; nothing on this site is a safety certification or a performance guarantee.
For developers, integrators and research partners building sim-racing, flight and research rigs. The PDK + ARK Ecosystem development kit, wheel and pedals included: $8,499.99 or €8,699.99 (development-kit price for qualified recipients). You add the seat, PC and screen.
Development Kit: early-access hardware, software in active development.
Under 1 ms game to motion · 3 g on all six axes, fully loaded (250 kg)
Portal Development Kit (PDK) — this is a development kit. The PDK is supplied as a kit of parts to developers, integrators, researchers and B2B partners for evaluation and development. It is assembled and commissioned by the recipient. It is not a finished consumer product, it is not offered for consumer sale, and nothing on this site is a safety certification or a performance guarantee. Figures are ARK’s published measurements, each with its source.
Request a development kit See it move
Built to allocation for qualified recipients · estimated 3–6 months from confirmation
Supplied under a Development Kit Evaluation Agreement: support commitment, cancellation and import terms are in the agreement.
Meet the PDK
game to motion
peak acceleration
degrees of freedom
encoders, every motor
Play 80+ games through FlyPT Mover and SimHub. They run from iRacing and Assetto Corsa Competizione to Microsoft Flight Simulator and DCS World. The PDK works with Xbox and PlayStation too.
The architecture

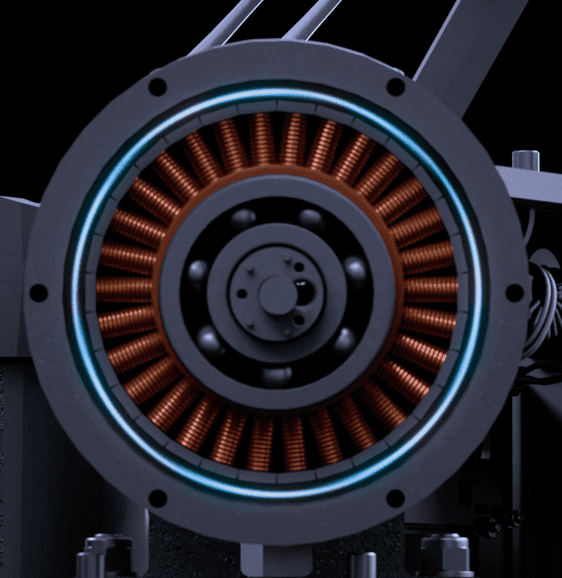

A Stewart platform has six legs between a fixed base and a moving top. Every leg helps with every move. Ours are driven directly. No belt stretches, and no gearbox has to take up slack before the platform answers.
Three air cylinders carry the weight. This is the part covered by patent CA 3217174 C. With gravity handled, the motors only move the platform to where the game wants it.
Fast

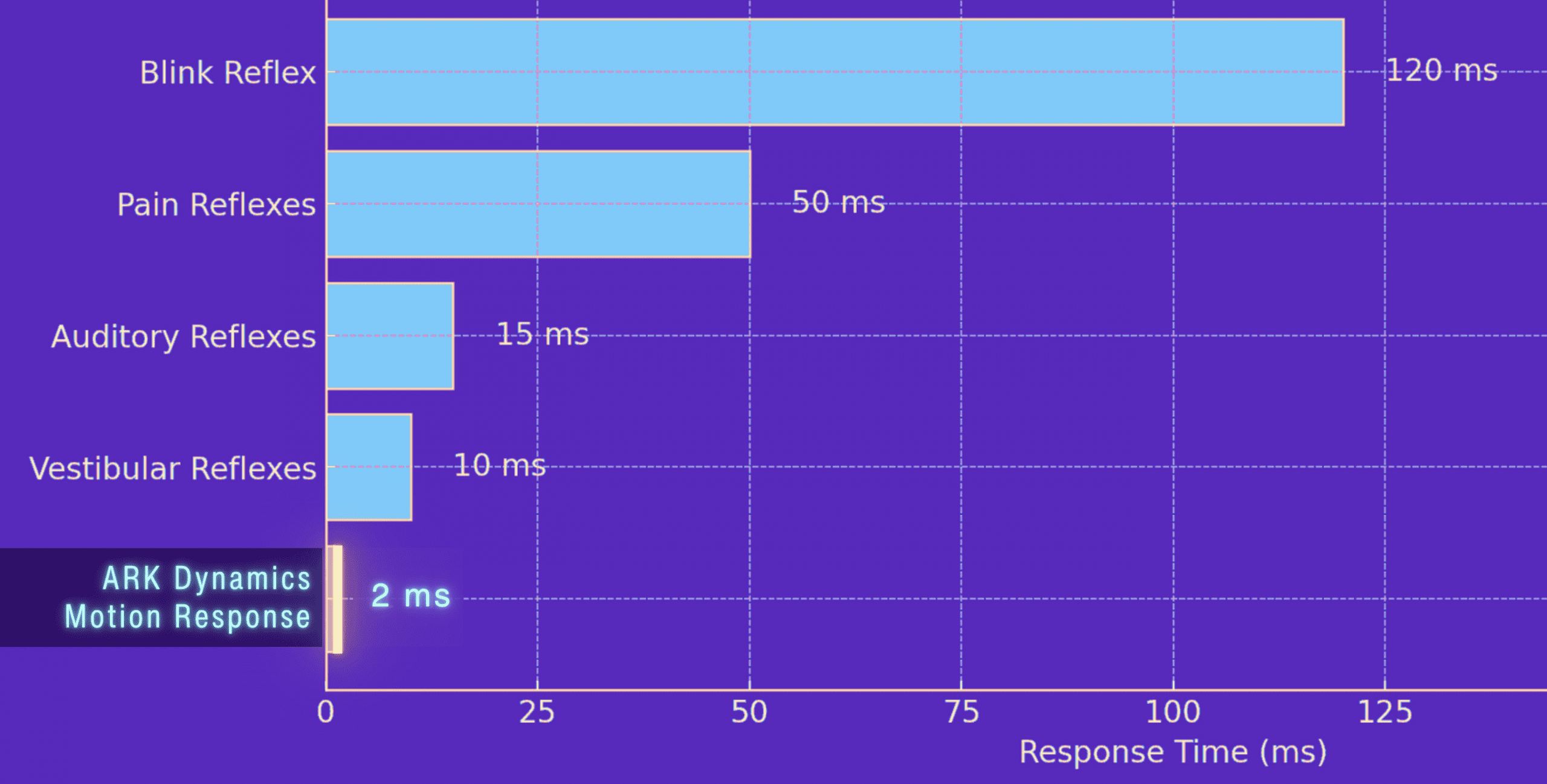

Bigger rigs are slow, and they drag you back to center. Measured: under 1 ms game telemetry to motion (both measurement points on /technology/latency/). What a rider feels is not something ARK can guarantee.
Powerful
A 1.41-farad recuperative capacitor bank lets the platform draw 30 kW in a burst. So a hit arrives at full strength. The power supply never has to ration it.
Robust

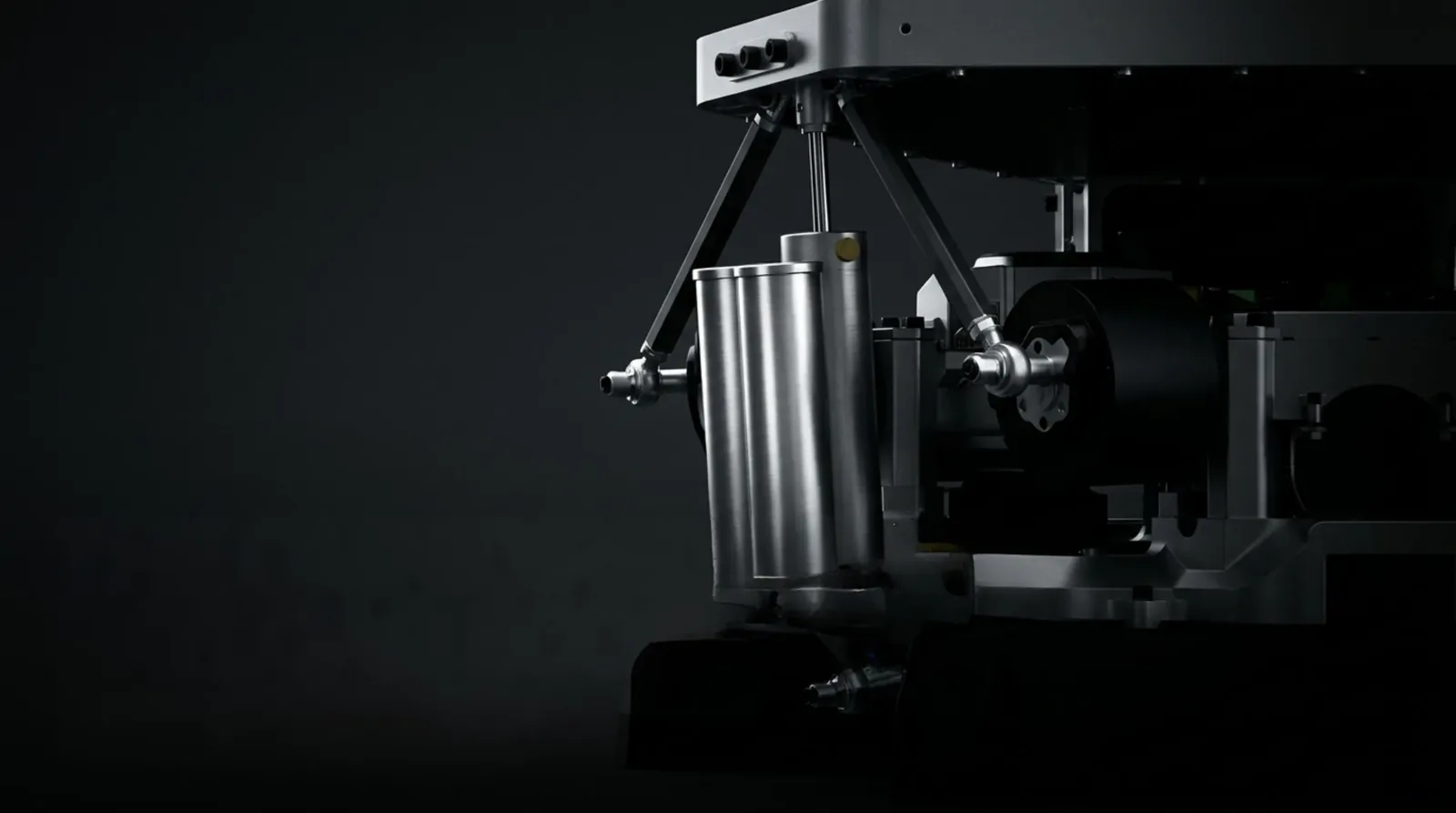

Three air pistons, each with two ballast tanks, work with the motors. The air balances the weight and the motors move it. It stands on a custom cast-aluminum base and table. It carries 250 kg of payload on 115 kg of platform.
Precise

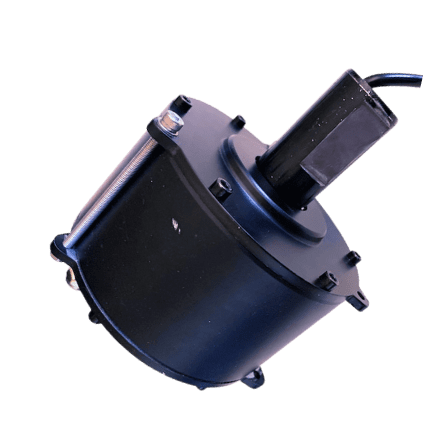

Each of the six motors reads 2,097,152 positions in every turn.
On camera
Four people, filmed as they climbed out. Each consented; none was paid or given anything. Every quote is cut from a captioned film on See it move. Recorded on expo demonstration units of the development kit.
Feels absolutely amazing … very realistic, especially the jumps.
Bruno BlumbergsRallycross driver · SimRacing Expo, Dortmund 2025
It felt stable … there was a lot more verticality than I thought there would be.
Jake RupertDriver · seated in the PDK Racer at the expo
Like nothing else … I’ve been sitting in motion rigs like that, but never driving, really. Really is a whole different beast.
Expo attendeeSimRacing Expo, Dortmund 2025 · right after a run
That was a workout … really good bit of kit.
Luke CraneAt the ARK Dynamics stand, immediately after a run

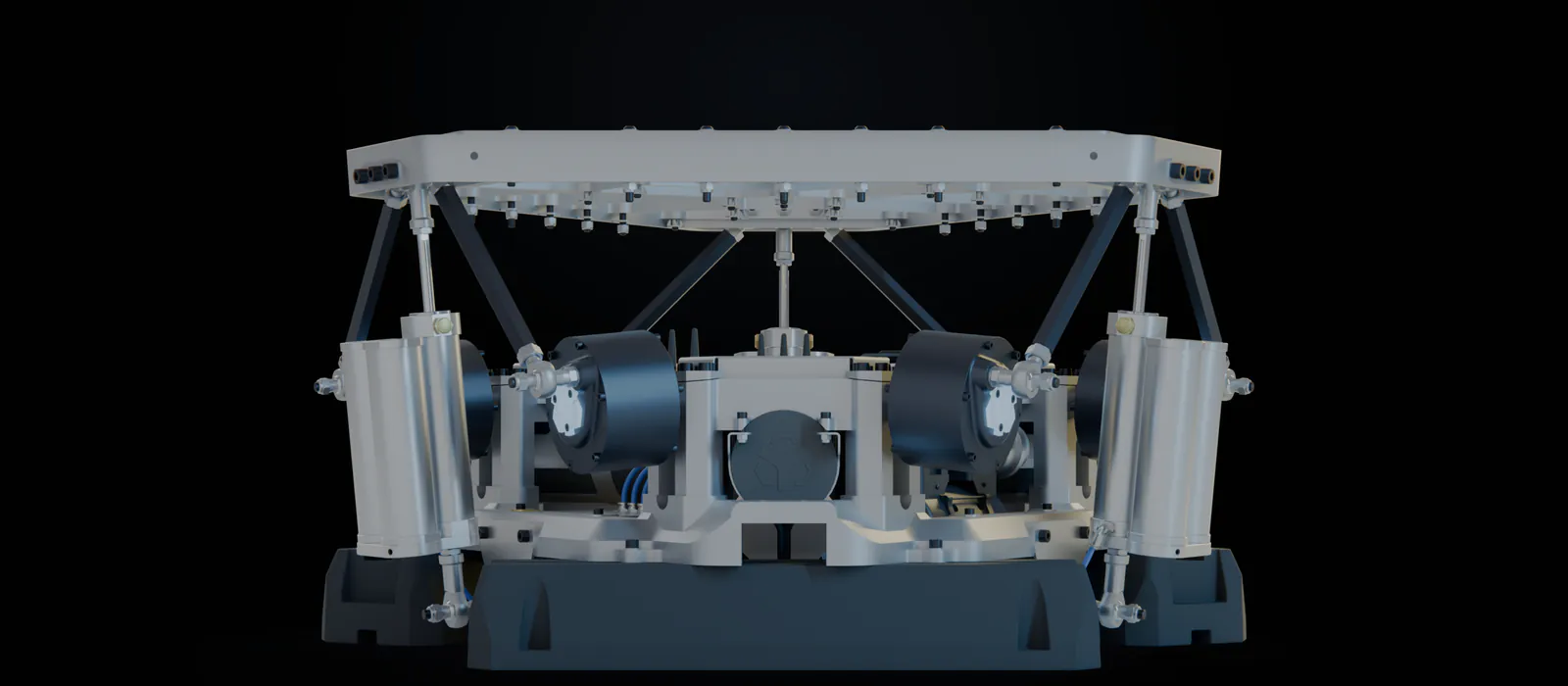

Envelope
Bigger travel is no use if it arrives late and has to be taken back. Surge, sway and heave move the platform along three axes. Pitch, roll and yaw turn it around them. All in under 1 ms.
Motion envelope · single axis
Surge
−75.49 to +82.74
Sway
± 71.92
Heave
± 58.68
Pitch
−7.98 to +8.09
Roll
± 8.68
Yaw
± 9.80
Total span above, the single-axis range beneath it.
Four development-kit builds
Every build has the same direct-drive 6DOF (DD6DOF) core. The PDK + ARK Ecosystem adds the chassis, wheelbase, wheel, load-cell pedals and button box. Each part is matched and ARK Approved.
Six axes, 3 g and 250 kg: development-kit price from $4,899.99 for qualified recipients. The PDK is a kit for development and evaluation, compared here only on published figures.
ARK Approved
PDK + ARK Ecosystem
$8,499.99€8,699.99 · development-kit price
Platform, racing chassis, feet and table, plus a matched wheelbase, wheel, load-cell pedals and button box. We make the forces. Every part is tested to take them. We build development kits in sequence for qualified recipients.
Request the PDK + ARK Ecosystem development kit
Built to allocation for qualified recipients · estimated 3–6 months from confirmation
PDK Racer
$6,299.99€6,499.99 · development-kit price

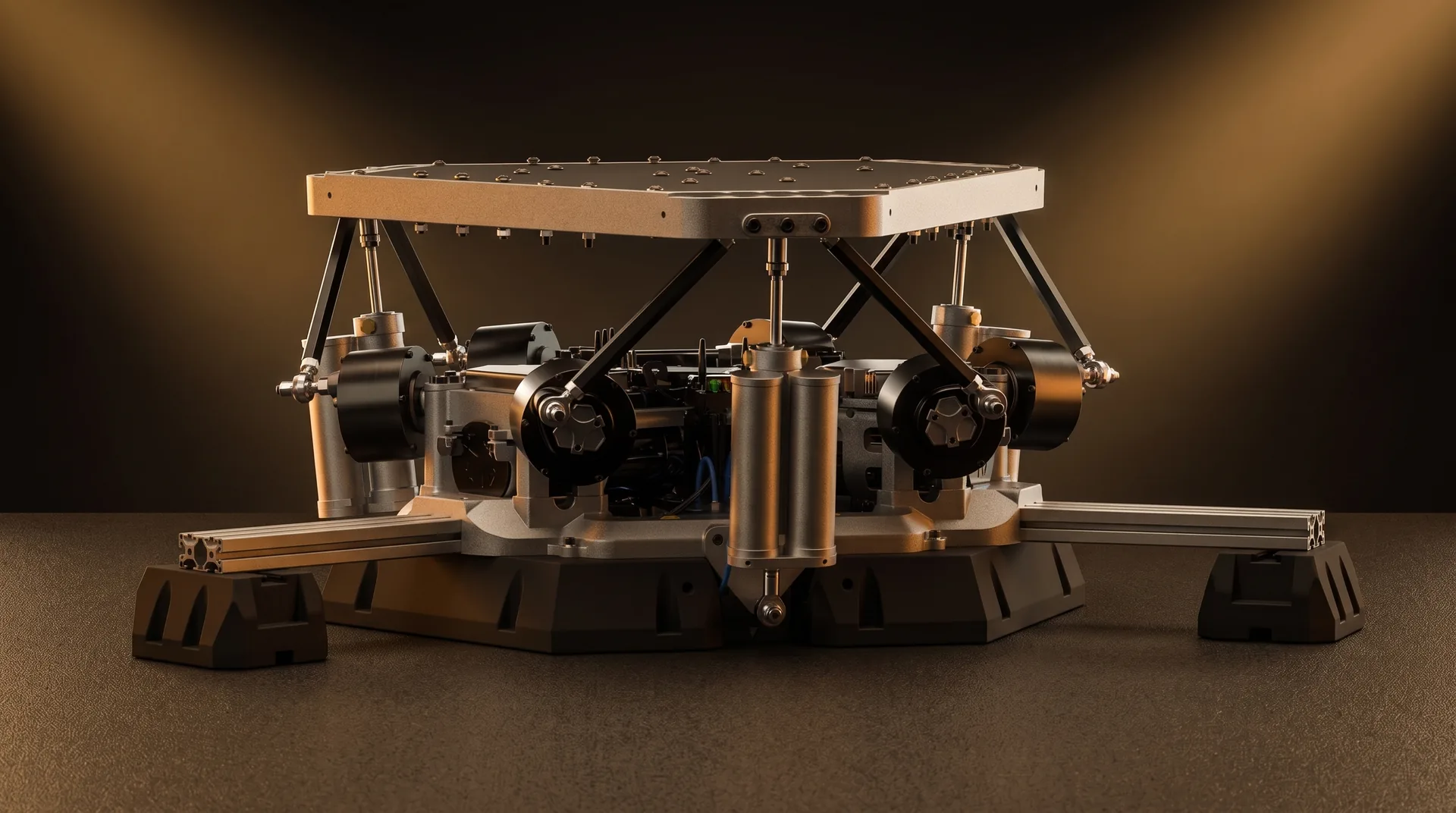

Platform, racing chassis and three stabilizer feet, plus the extension feet and table. Mount your own wheel and pedals.
Request the PDK Racer development kit ›
Built to allocation for qualified recipients · estimated 3–6 months from confirmation
PDK + Extension Feet & Table
$5,299.99€5,499.99 · development-kit price
Adds the extension feet and the two-piece wood table. Free-standing; the wider feet keep it steady under hard acceleration.
Request the PDK + Extension Feet & Table development kit ›
Built to allocation for qualified recipients · estimated 3–6 months from confirmation
PDK (Portal Development Kit)
$4,899.99€4,999.99 · development-kit price
The DD6DOF motion platform: three motor blocks, six direct-drive motors, three pneumatic legs and a flat top. Mount your own cockpit on it.
Request the PDK development kit ›
Built to allocation for qualified recipients · estimated 3–6 months from confirmation
Development kits are supplied to qualified recipients in the United States and other regions under an evaluation agreement; the recipient imports the Kit and pays shipping, which is quoted separately. Import duty, tariffs and taxes are not included. New EU requests are paused and will reopen for businesses only.
Allocation
Development-kit allocation for qualified partners: places remaining on request.
$8,499.99
USD · development-kit price
United States
Import duty, tariffs and taxes are not included and are paid by the recipient.
EU
New EU requests are paused and will reopen for businesses only.
Elsewhere
Import duty, tariffs and taxes are not included and are paid by the recipient on delivery: import VAT, duty and customs fees go to customs. They are not in the price, and we cannot calculate them in advance. For the UK, Switzerland, Norway, Iceland and Liechtenstein, the import VAT rate is shown on the request page.
Shipping
Quoted and billed separately when your development kit is ready. Development kits are invoiced to the recipient under the evaluation agreement; codes, if issued, go on the request.
Built to allocation for qualified recipients · estimated 3–6 months from confirmation
